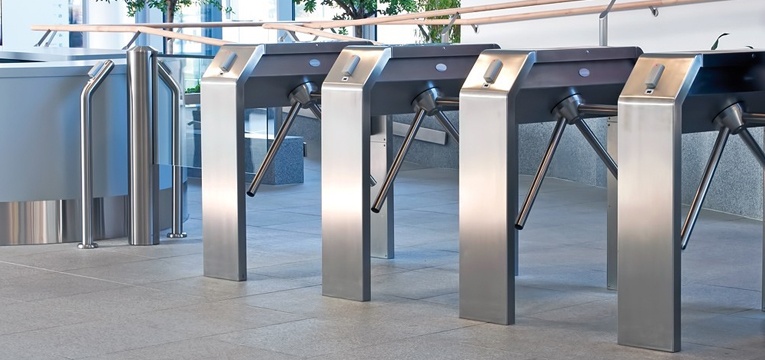

Tripod turnstile
Three arms turn one step for each person.
Best for: Factories, gyms and site entrances
Example: HuAi BV T6610

Four kinds of gate, each for a different entrance. Speed gate is the common name for flap and swing barriers.

Three arms turn one step for each person.
Best for: Factories, gyms and site entrances
Example: HuAi BV T6610

Two flaps pull back to open the lane, then close behind the person.
Best for: Busy office lobbies
Example: HuAi BV FB6625

Glass panels swing open; lanes can be wider.
Best for: Wheelchairs, deliveries and mixed lobbies
Example: HuAi BV SG6626

A rotor from the floor to above head height, so nobody can climb over or slip under.
Best for: Unmanned perimeters and outdoor gates
Example: HuAi BV FH6633
Lane width, opening speed, size and power from HuAi's own product pages. Add any gate to your quote list; we confirm lanes and finishes after a site survey.
| Model | Lane width | Opens in | Size | Power | Quote |
|---|---|---|---|---|---|
HuAi BV FB6625HuAi · Flap barrier gate | 550 mm | 0.3–0.4 s | 1200 × 300 × 1000 mm | 40–60 W | |
HuAi BV SG6626HuAi · Swing barrier gate | 600–800 mm | 0.5–0.8 s | 1200 × 140 × 1000 mm | 40–60 W | |
HuAi BV T6610HuAi · Tripod turnstile | One person at a time | Not listed | 1200 × 230 × 980 mm | 40–70 W | |
HuAi BV TB6611HuAi · Tripod turnstile | One person at a time | Not listed | 280 × 260 × 380 mm | 40–70 W | |
HuAi BV FH6633HuAi · Single full-height turnstile | 600 mm | 1–2 s | 1550 × 1332 × 2230 mm | 30–60 W | |
HuAi BV FHD6634HuAi · Double full-height turnstile | 600 mm | 1–2 s | 2200 × 1460 × 2310 mm | 30–60 W |
Sizes are length × width × height. HuAi does not list an opening speed for its tripod turnstiles. All figures are the maker's; we check them against your site before you order. More about the brand on our HuAi page.
The reader decides who may pass; the gate just opens. HuAi lists dry-contact and RS-485 inputs on the BV FH6633, the simple signals a reader or controller uses to tell a gate to open.

HID · Face recognition reader

Virdi · Walk-through face terminal

Virdi · Face recognition terminal

Suprema · Outdoor face reader

HuAi · Face, fingerprint and card terminal
A parts list for one entrance. We size the number of lanes to your busiest hour, and connect the gate to your fire alarm so the lanes open for evacuation.
| Item | Part | What it does | What we supply | Link |
|---|---|---|---|---|
| 1 | Gate | Tripod, flap, swing or full-height, one per lane. | HuAi | |
| 2 | Reader | Face, card or QR reader on or beside each lane. | HID Amico, Virdi, Suprema, HuAi | |
| 3 | Access software | Who may pass which lane, and when; every entry recorded. | Reader maker software, such as Suprema BioStar 2 | |
| 4 | Cards or QR passes | Cards for staff without face enrolment; QR passes for visitors. | Proximity, MIFARE | |
| 5 | Fire alarm link | Opens the lanes when the fire alarm sounds. | With your fire contractor | |
| 6 | Installation | Floor fixing, cable ducts, wiring, testing and handover. | LogIT team |
More in our buying guides.
A tripod turnstile has three turning arms and suits factories, gyms and sites. A speed gate, meaning a flap or swing barrier, uses moving panels, opens faster and looks neater in an office lobby.
HuAi lists an operating speed of 0.3 to 0.4 seconds for the BV FB6625 flap barrier and 0.5 to 0.8 seconds for the BV SG6626 swing barrier. Real flow also depends on how fast the reader checks each person.
Yes, if the lane has a reader that reads QR codes, such as the HID Amico VL35LF. Ask us how visitor passes can work with your visitor system.
It should be wired so that it does. We connect the gate to your fire alarm so the lanes open for evacuation, and we agree the final design with your fire contractor.
Yes. The HuAi BV SG6626 swing barrier has a 600 to 800 mm lane, wider than the 550 mm lane of the BV FB6625 flap barrier.
For outdoor perimeters, a full-height turnstile such as the HuAi BV FH6633 is the usual choice. HuAi lists an operating temperature of -20 to 70 °C for it.
Send a photo of the entrance, the number of people at your busiest hour and how they will identify. We suggest the gates and readers and install them across the UAE.
